Stereo imaging tools for producers are plugins and processors designed to manipulate the stereo field with precision, shaping width, depth, and spatial placement across a mix. The industry standard term is stereo field processing, and it covers everything from basic widening to multiband Mid/Side control. Producers who master these tools gain direct control over how listeners perceive space, separation, and dimension in a track. This guide covers the features that matter, the techniques that work, and the mistakes that cost you mix quality.
1. What features make stereo imaging tools effective for producers?
The best stereo imaging tools share four core features: multiband width control, Mid/Side processing, real-time visual feedback, and mono compatibility checking. Each feature solves a specific problem in the mixing workflow. Without them, widening a mix becomes guesswork that often introduces phase cancellation or bass loss.
Linear-phase FIR crossovers split the signal into frequency bands without introducing phase smear. That matters because standard IIR filters shift phase relationships between bands, which muddies the stereo image at crossover points. FIR-based tools keep each band phase-accurate, so the final image sounds clean and coherent.
Real-time vectorscopes and phase correlation meters give producers visual confirmation of what their ears are hearing. A vectorscope shows the stereo field as a Lissajous figure: a vertical line means mono, a wide ellipse means stereo, and a horizontal line signals phase cancellation. These displays catch problems before they reach the listener.
Pro Tip: Always check your phase correlation meter before bouncing a final mix. A reading below zero means your mix will lose energy when played in mono, which still affects streaming platforms, phones, and club PA systems.
- Multiband width control: Keeps bass frequencies narrow while widening mids and highs
- M/S processing: Separates the center signal from the sides for independent control
- Vectorscope display: Shows stereo field shape and phase relationship in real time
- Mono-to-stereo conversion: Adds controlled width to mono sources without phase artifacts
- Gain-linked side channel: Adjusts width without changing perceived loudness
2. Top stereo imaging tool categories for spatial audio production
Stereo imaging tools fall into distinct categories, and choosing the wrong category for a task produces poor results. A basic widener works for a single synth pad. It fails on a full mix bus.
Basic stereo wideners and enhancers are the entry point. These tools apply a single width control across the full frequency spectrum. They work well on individual tracks, like guitars, pads, or room reverbs, where you want more spread without complex control. The risk is over-widening, which creates phase problems when the track is summed to mono.

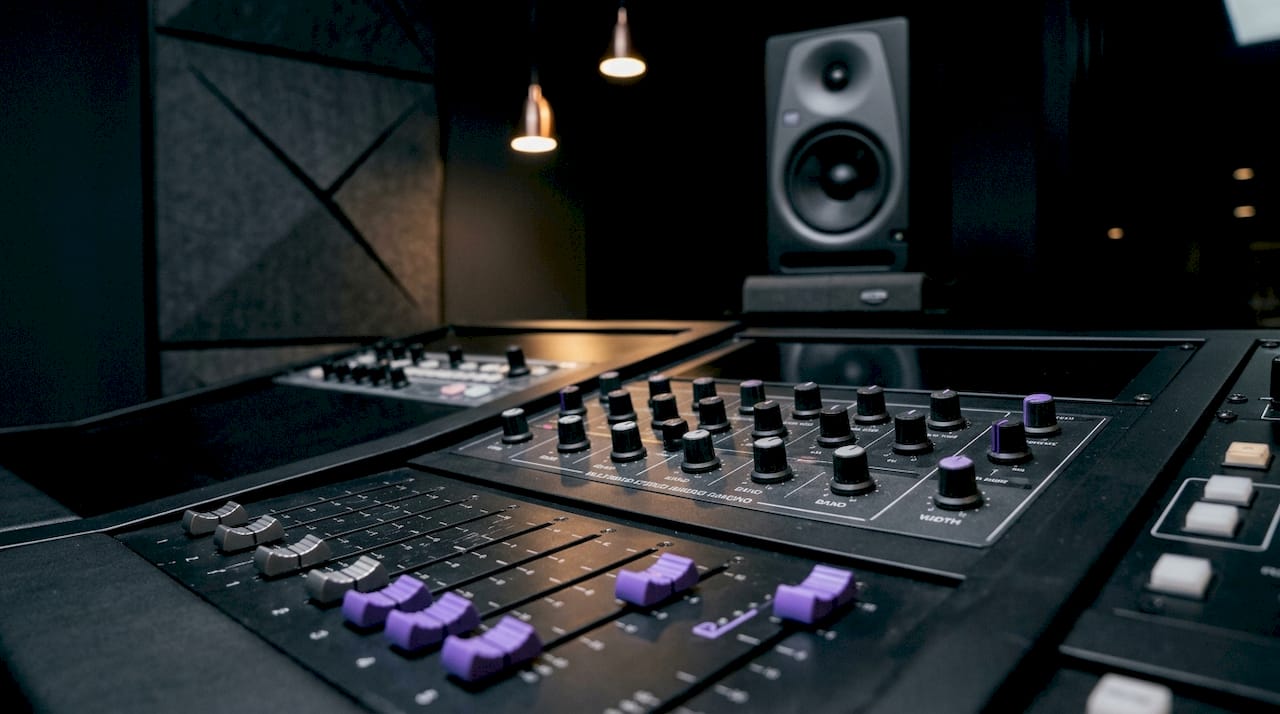

Multiband stereo width processors give independent control over low, mid, and high frequency bands. Advanced producers rarely apply wide-band stereo imaging across an entire mix. Instead, they keep low frequencies centered and widen only the mid and high bands, preserving bass punch while expanding the perceived soundstage.
3D audio spatialization tools go further, placing sounds in three-dimensional space using binaural rendering, Ambisonics, or object-based audio formats like Dolby Atmos. These are the primary audio spatialization tools for immersive media production, including spatial audio for Apple Music, gaming, and film. They require a different monitoring setup and a different mixing mindset.
- Basic wideners: Best for individual tracks and simple width enhancement
- Multiband processors: Best for mix bus and mastering, preserving mono integrity
- M/S processors: Best for post-recording width adjustment and spectral shaping
- 3D spatialization tools: Best for immersive audio formats and object-based production
- Imaging effects plugins: Best for creative sound design and experimental spatial textures
The category you choose should match your production goal. Mixing stereo images on a full session requires multiband control. Designing a spatial sound effect for a game requires a binaural renderer.
3. How mid/side (M/S) techniques integrate with stereo imaging tools
M/S processing allows producers to control stereo width after recording by independently adjusting the mid signal (center) and the side signal (everything that differs between left and right). This is one of the most powerful techniques in modern mixing workflows.
The mid channel carries the kick, bass, lead vocal, and snare. The side channel carries room ambience, stereo reverb tails, and wide synth layers. Boosting the side channel widens the mix. Cutting it narrows the mix and tightens the center image. M/S EQ takes this further by applying frequency-specific boosts and cuts to either channel independently.
Here is a practical M/S workflow for mixing:
- Insert an M/S processor on the mix bus or a stem bus.
- High-pass the side channel below 100Hz to keep bass frequencies mono.
- Apply a gentle high-shelf boost to the side channel above 5kHz to open up the top end.
- Use M/S compression to control dynamic width, reducing side level on loud transients.
- Check the result in mono to confirm no frequency content disappears.
M/S processing flexibility makes it valuable for both live and studio production. You can adjust width post-recording without re-recording sessions. That saves time and gives engineers control they would not have with a fixed stereo recording.
Pro Tip: Apply M/S EQ to your drum bus before reaching for a stereo widener. Boosting the side channel between 3kHz and 8kHz adds air and width to cymbals and room mics without touching the kick and snare in the center.
The psychoacoustics behind M/S processing explain why it works so well. The human auditory system uses level differences between ears to locate sounds. M/S tools exploit that mechanism directly, making width adjustments feel natural rather than artificial.
4. Common pitfalls to avoid when using stereo imaging tools
Most stereo imaging mistakes fall into one of five categories. Each one is avoidable with the right habits.
- Over-widening low frequencies: Widening sub-bass weakens low-end impact and creates phase cancellation. Keep everything below 100Hz mono. This is not optional for professional mixes.
- Ignoring monitor placement: Symmetrical monitor placement with proper toe-in is as important as any software tool. Misplaced monitors create a false stereo image that leads to bad mixing decisions. A simple physical adjustment often solves perceived stereo instability better than any plugin.
- Using wide-band widening on the mix bus: A single width control across all frequencies widens the bass along with everything else. Use a multiband processor on the mix bus, not a basic widener.
- Skipping the mono check: Phase cancellation only reveals itself in mono. Check every stereo decision in mono before committing. Most DAWs include a mono button on the master bus for this purpose.
- Trusting visuals over your ears: Vectorscopes and phase meters are diagnostic tools, not creative guides. A mix can look perfect on a vectorscope and still sound wrong. Let your ears make the final call.
The monitoring environment point deserves extra attention. Producers often spend money on plugins when the real problem is an asymmetrical room or monitors placed too close to walls. Fix the room first, then reach for the software.
5. How to use M/S recording to improve stereo imaging before mixing
Stereo imaging starts at the recording stage, not the mix stage. Coincident XY microphone pairs rely on level differences rather than time delays, which gives them excellent mono compatibility and a focused stereo image. XY recordings translate well to mono without phase cancellation, making them a reliable foundation for stereo imaging in post.
M/S recording uses a cardioid microphone facing forward (the mid mic) and a figure-8 microphone facing sideways (the side mic). The two signals are decoded into a standard stereo pair during mixing. The advantage is that you can adjust the width of the recording after the fact by changing the level of the side mic signal. That level of control is not possible with spaced pair or ORTF recordings.
Producers working in stem-based workflows benefit most from M/S recording. When stems arrive with clean mono compatibility, stereo imaging tools have more room to work without creating artifacts. A poorly recorded stereo source limits what any plugin can do.
6. How to enhance stereo width without damaging your mix
Enhancing stereo width without damaging a mix requires restraint and a frequency-aware approach. The goal is to make the mix feel wider, not to make it sound processed.
The most reliable method is multiband stereo imaging, which preserves center energy in low frequencies below 100–200Hz while widening mid and high frequencies. This technique maintains bass punch and clarity while expanding spatial perception in the upper register. The result sounds natural because it mirrors how real acoustic spaces behave: low frequencies are omnidirectional, while high frequencies carry directional information.
A second method is using hardware versus software processing in combination. Some producers run a mix through an analog summing mixer to add subtle stereo character, then apply digital M/S processing to refine the result. The analog stage adds harmonic complexity; the digital stage adds precision control.
The third method is creative panning combined with subtle widening. Hard-panning elements to opposite sides and applying a small amount of widening to the overall bus creates a wide image without relying entirely on a widener plugin. This approach keeps phase relationships clean because the width comes from placement, not from processing.
Key takeaways
Effective stereo imaging requires multiband control, M/S processing, and a phase-safe monitoring workflow applied together.
| Point | Details |
|---|---|
| Use multiband control on the mix bus | Keep bass frequencies mono and widen only mid and high bands for clean results. |
| Apply M/S processing post-recording | Adjust stereo width after recording without re-recording sessions using M/S tools. |
| Check every mix in mono | Phase cancellation only appears in mono; always verify before final export. |
| Fix your monitoring environment first | Symmetrical monitor placement solves stereo perception problems that plugins cannot. |
| Match the tool category to the task | Basic wideners suit individual tracks; multiband processors suit the mix bus and mastering. |
Why restraint is the real skill in stereo imaging
Most producers I have worked with make the same mistake when they first get access to quality stereo imaging tools. They push the width too far. The mix sounds impressive on headphones for about thirty seconds, then the fatigue sets in. Wide is not the same as good.
The producers who get the best results treat stereo width like reverb: a little goes a long way, and the best applications are the ones listeners do not consciously notice. A mix that feels wide and three-dimensional without sounding processed is the goal. That takes discipline, not more plugins.
My preference is multiband M/S processing on the mix bus, with a vectorscope running at all times. I set the low band to zero width, apply modest widening to the mid band, and add a touch more to the high band. Then I check in mono. If anything disappears, I pull back. That workflow catches problems before they become decisions I regret.
The monitoring setup matters more than most producers admit. I have fixed stereo imaging problems by moving monitors two feet and adjusting toe-in by ten degrees. No plugin involved. Simple monitor adjustments can solve stereo instability more effectively than any software processing. Get the room right before you reach for a widener.
Experiment within phase-safe parameters. Try M/S EQ on individual stems before applying it to the full mix. Use a vectorscope to understand what each adjustment does visually. Build the habit of checking mono at every stage. The tools are only as good as the workflow around them.
