Audio Callback Function Explained for DSP Developers

Audio Callback Function Explained for DSP Developers

DSP developer coding audio callback function

An audio callback function is a routine your audio system calls repeatedly, on a dedicated high-priority thread, to fill or drain audio buffers in real time. Every major audio API, including PortAudio, RtAudio, ALSA, Core Audio, and WASAPI, organizes real-time audio around this pattern. The callback receives pointers to input and output buffers, a frame count, timing metadata, and a status flag. Your job is to read from the input buffer, compute something, and write to the output buffer before the hardware runs out of samples.

The frequency of those calls depends directly on your buffer size and sample rate. At 48 kHz with a 256-sample buffer, the callback fires approximately 187.5 times per second. Miss one deadline and you get an audible glitch. That constraint shapes every decision you make inside the function.

Key facts about the callback execution model:

How to write and implement an audio callback function

The function signature varies by API, but the structure is consistent across all of them. In PyAudio's callback mode, for example, the signature looks like this:

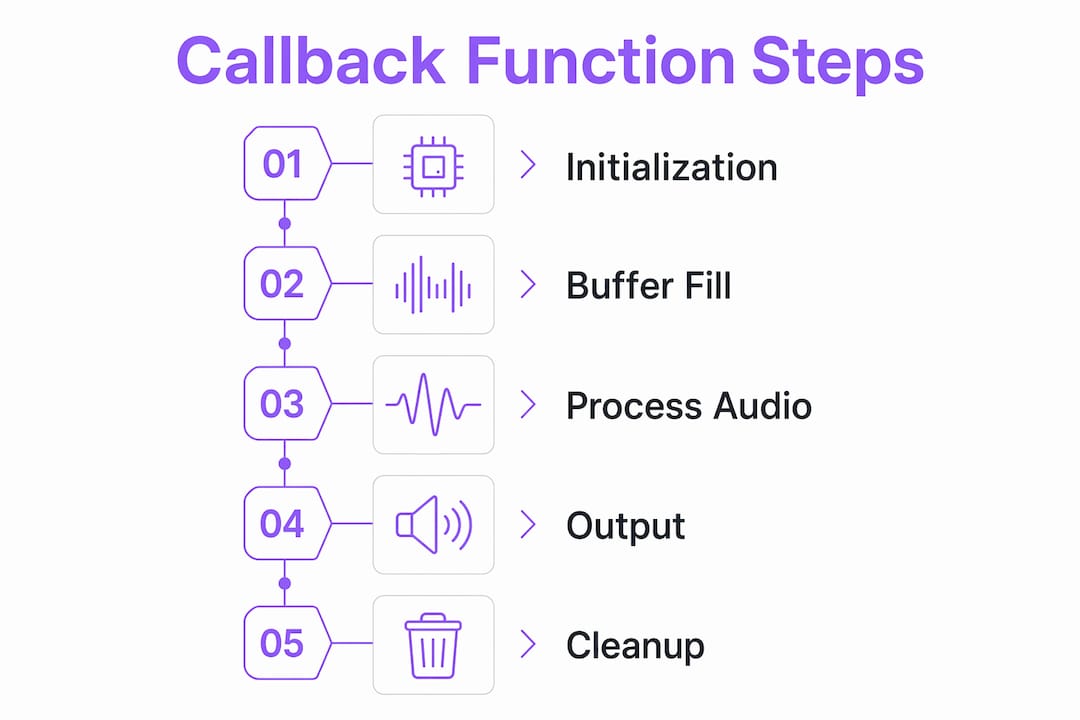

Infographic showing steps of audio callback function

def callback(in_data, frame_count, time_info, status_flags):
    # process audio here
    return (out_data, pyaudio.paContinue)

PortAudio's C API follows the same logic with typed pointers:

static int audioCallback(
    const void *inputBuffer,
    void *outputBuffer,
    unsigned long framesPerBuffer,
    const PaStreamCallbackTimeInfo *timeInfo,
    PaStreamCallbackFlags statusFlags,
    void *userData)
{
    float *out = (float *)outputBuffer;
    MyData *data = (MyData *)userData;

    for (unsigned long i = 0; i < framesPerBuffer; i++) {
        *out++ = generateSample(data); // left channel
        *out++ = generateSample(data); // right channel
    }
    return paContinue;
}

The userData pointer is how you pass state into the callback without global variables. Keep that struct lean: oscillator phases, filter coefficients, a ring buffer pointer. Nothing that requires allocation at runtime.

Buffer management is where most developers make their first mistake. The output buffer is uninitialized when your callback receives it. You must write every frame, including silence, or you will hear whatever garbage was in memory. The JUCE AudioIODeviceCallback contract makes this explicit: fill all output channels completely before returning, even when producing silence.

Close-up hands typing audio buffer code

Control rate versus audio rate is a distinction worth building into your architecture from day one. Parameters like filter cutoff or gain do not need to update every sample. Compute them once per buffer at control rate, then apply them across the sample loop at audio rate. This separation, described in detail in DSP systems architecture, cuts CPU overhead without any perceptible quality loss.

Pro Tip: Pre-compute everything you can before the sample loop. Coefficient tables, lookup tables for waveshaping, and parameter smoothing factors all belong outside the inner loop.

Operations to avoid inside any callback:

"Avoidance of blocking calls, dynamic memory allocation, and I/O inside the callback is crucial to prevent glitches." — PortAudio documentation

On Android, buffer sizes can vary between callback invocations. Write your processing loop to handle a variable framesPerBuffer gracefully rather than assuming a fixed size.

Real-time constraints and best practices you cannot ignore

The audio callback thread is not a normal thread. It behaves more like an extension of a hardware interrupt handler, and the OS scheduler will not protect it from priority inversion the way you might expect.

Priority inversion happens when your high-priority callback thread tries to acquire a mutex held by a lower-priority thread. The lower-priority thread gets preempted, the mutex never releases, and your callback misses its deadline. The fix is not a higher-priority mutex. The fix is no mutex at all inside the callback.

The standard solution is a lock-free ring buffer between your callback thread and everything else. The main thread writes parameter updates or MIDI events into the ring buffer; the callback reads from it without ever blocking. This decouples real-time audio processing from slower operations like UI updates or file I/O.

Safe operations inside a callback:

Pro Tip: Use a dedicated lock-free FIFO library rather than rolling your own. Subtle memory ordering bugs in hand-written ring buffers are notoriously hard to reproduce under load.

For debugging, the most reliable technique is to log from the main thread, not the callback. Write a flag or counter inside the callback, read it from the main thread, and log there. Inserting printf or std::cout directly into a callback will eventually cause a dropout, usually at the worst possible moment during a session.

Understanding the hardware vs. software boundary in audio systems helps clarify why these constraints exist at the driver level, not just in your application code.

How block size shapes latency and CPU load

The relationship between audio block size, callback rate, and latency is the central performance trade-off in real-time audio. Larger blocks reduce how often the callback fires, which lowers CPU overhead but increases latency. Smaller blocks fire the callback more frequently, cutting latency but raising the risk of dropouts if your processing takes too long.

Typical block sizes on mainstream operating systems hover around 256 samples. That figure balances processing efficiency with acceptable latency for most applications. Professional recording contexts often push down to 64 or 128 samples, accepting higher CPU load for tighter monitoring latency.

"Callbacks running longer than their allocated frame duration cause buffer underruns and audible glitches." — PortAudio/portaudio Wiki

Practical tuning strategies:

Advanced DSP work like beamforming, where synchronized multi-channel input streams are processed within a single callback to produce directional audio output, demonstrates how much computation can run inside a callback when the architecture is clean. The key is pre-allocation and deterministic math, not clever tricks at runtime.

For deeper coverage of low-latency thread programming techniques that complement callback design, Vector-dsp has a dedicated guide covering thread priority, CPU affinity, and OS-level tuning.

Key Takeaways

The audio callback function is the real-time core of any audio application: get its threading model and execution constraints right, and everything else follows.

Point Details
Callback fires at fixed intervals At 48 kHz sample rate with a 256-sample buffer, the audio callback is called approximately 187.5 times per second.
No blocking inside the callback Avoid malloc, mutex locks, and I/O; any blocking call risks a missed deadline and an audible dropout.
Use ring buffers for cross-thread data Lock-free ring buffers let the main thread pass parameters to the callback without priority inversion risk.
Separate control rate from audio rate Update parameters once per buffer, not once per sample, to reduce CPU overhead without quality loss.
Block size drives the latency trade-off Smaller buffers cut latency but increase CPU load; 256 samples is the common baseline on mainstream systems.
